CLAIRIFY Quantum Disinfection Water Purification Units

No power needed.

Off-grid? Power outages? CLAIRIFY Quantum Disinfection Media units are not electrical devices. They require no power to work.

No chemicals used.

Claire Quantum Disinfection Media adds nothing to the water. It does not contain or produce disinfection byproducts. No trihalomethanes are formed in potable water. Claire Quantum Disinfection Media removes pathogens through surface contact only, and by adding nothing to the water to provides safe disinfection.

Whole house and point-of-use products.
Whether you need to disinfect at point of entry to a household, disinfect a single tap outlet or purify your RV or boat drinking water tank outlet, CLAIRIFY has an appropriate product.

Low maintenance.
Claire Quantum Disinfection is simple and operator-friendly due to its low maintenance requirements. Because Claire Quantum Disinfection is a media-bed disinfection application, there are no bulbs to clean, no lamps to repair, and no chemicals to transport and store. Simply replace the cartridge at end of life.

Installation ease.
CLAIRIFY Units are either in-line or click-in. Simple to install.

Proven results.
Validated by numerous 3rd-party agencies, including the U.S. EPA  the U.S. Department of Homeland Security and NSF, Claire Technologies Quantum Disinfection Media has been rigorously tested in laboratory and field settings.

NSF 42 and 61.
Claire Quantum Disinfection Media for potable water is NSF 42 component certified and certified by IAPMO R&T to NSF/ANSI standard 61.

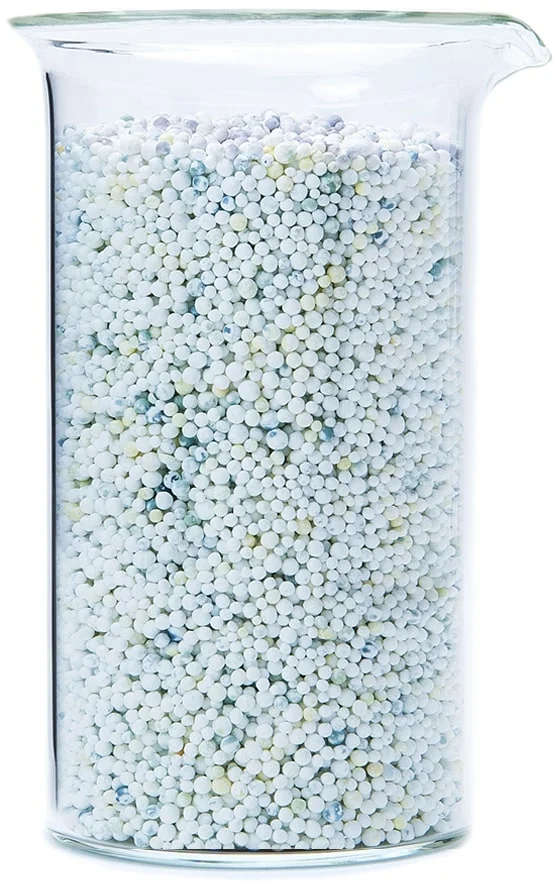

CLAIRIFY Quantum Disinfection.jpg

What is it? How does it work?

Quantum Disinfection

Claire Quantum Disinfection™ media represents a breakthrough in fluid disinfection technology. After 4 years of development and 2 years of field testing, Quantum Disinfection™ is poised to become the new standard in drinking water disinfection,process water disinfection, cooling tower disinfection, storm-water disinfection, and many other types of fluid disinfection applications.

Utilizing elemental P-type semiconductor technology and solid-state theory, Claire Technologies created Quantum Disinfection™ media. This patented media contains a powerful electron flowing surface, eliminating the need for outside power or chemical sources for disinfection.

Chemical-free, power-free, maintenance-free and extremely cost effective, Quantum Disinfection™ works as a final disinfection solution for all fluid applications on any scale.

During production phase, Quantum Disinfection™ media is structured as a P-type semiconductor through a spatial deposition of different chemical layers on the silica surface. This micron-accurate arrangement of surface deposits provides the media an absence of valence electrons on its outermost layer.

As microorganisms (bacteria and viruses) come into contact with Quantum Disinfection™ media, the electrons inside the pathogens are instantly attracted by the positively charged surface. This causes the entire structure of the microorganisms to collapse on a molecular scale, with the electrons transferring immediately to the media surface. TPC measurements confirm the pathogen’s DNA is also instantly destroyed in the dense electron exchange. In a mere 0.01 seconds, cell lysis occurs and the pathogen ceases to exist completely.

Validated by numerous 3rd-party testing agencies, including the EPA and Department of Homeland Security, Quantum Disinfection™ media will revolutionize water disinfection across multiple industries.

Quantum Disinfection™ is the future, and the future is here.


Applications

Drinking Water Disinfection
Whether disinfection or fluoride removal is necessary, Quantum Disinfection™ excels at providing ultimate protection for drinking water. Designs tested include bottles, pitchers, gravity and inline systems. Only small amounts of Quantum Disinfection™ media are necessary for complete disinfection and peace of mind. NSF 42 and 61 certified

POE  and POU Water Disinfection
Quantum Disinfection™ media  is supplied in easy to install cartridges for inline whole house solutions (Clairify 12) or Point of Use cartridges ( Clairify 1 and Clairify RO).

Rain Water Disinfection
Rainwater disinfection is simple with Quantum Disinfection™. Chemical-free and power-free, Quantum Disinfection™ media can be used at the point-of-use or inside the tank in a circulation system. Pilot studies available upon request.

Industrial Water Disinfection
Quantum Disinfection™ applies within multiple industries, from agricultural to food processing, to poultry, to chiller loops. For industries wanting to lower biocides, eliminate chemicals or UV, Quantum Disinfection™ offers a safer, cheaper alternative. Pilot studies available upon request.

WasteWater Disinfection
Quantum Disinfection™ can be designed and implemented into current wastewater operations, whether in a modified industrial housing or a newly fabricated unit. Pilot studies available upon request.

Cooling Tower Disinfection
Quantum Disinfection™ can be used in cooling tower loops, in conjunction with appropriate housings to provide complete cooling tower disinfection. Pilot studies available upon request.

Ballast Water Disinfection
Paired with a robust primary filtration system, Quantum Disinfection™ can be designed and implemented into current ballast water solutions. Lab studies pilot available upon request.


Pathogen Performance

Quantum Disinfection™ Germicidal activity tested by certified laboratories

According to the BS EN 1276 Antiseptic and Disinfectant Standards, Quantum Disinfection™ "is considered as a disinfectant any product that has the ability to reduce by 10E+5 (5 log) the number of viable bacterial cells belonging to referenced strains of Pseudomonas aeruginosa, Escherichia coli, Staphylococcus aureus and Enterococcus hirae" (Art. 3.3-Bactericidal Activity, page 6).

Several institutions such as Environmental Protection Agency (EPA - USA), Pastor Institute of Lille (PIL - France), Microbac (USA), Proteus (France), Ackuritlabs (USA), Guangdong Detection Center of Microbiology (GDCM - China) and The Byrraju Foundation Microbiological Laboratory (BFML - India) tested  Quantum Disinfection™ media according to the BS EN 1276 Standards and our applications.

Micro-organism (MO)MO TypeBest germicide efficiency (log reduction)Certified Laboratory
Pseudomonas aeruginosaBacteriaLog 7PIL,Proteus
Escherichia coli Log 7EPA,PIL,Microbac,Proteus, Ackuritlabs, GDCM, BFML
Staphylococcus aureus Log 7PIL,Proteus,BFML
Eterococcus hirae Log 10Ackuritlabs, PIL,Proteus
Legionella adelaidensis  Log 6Proteus
Citrobacter sp Log 5PIL
Candida albicansYeastLog 5Proteus
Anabaena constrictaAlgaeLog 5Proteus

Now you can buy Clairify units online

We only ship to New Zealand at present through this online store.

You can Contact us to purchase from outside New Zealand.

All pricing is gst inclusive. For further information see our Terms & Conditions.


Clairify 1
NZ$390.00

Application: Point-of-Use
Power Requirements: None
Main Use: Water Disinfection, Taste and odour Removal
Flow Rates: 3.7 litres per minute
Unit Dimensions: 31 x 8 cm
Max Operating Pressure: 1.7 bar
Expected Life: > 18, 500 litres
Operating Temperature: 5 – 38 C
Disinfection Capacity: >99%
Inlet/ Outlet: 3/8 inch

Add To Cart
Clairify 12
NZ$855.00

Application: Point-of-Entry, Point-of-Use
Power Requirements: None
Main Use: "Water Disinfection (E. Coli elimination), Chloride and Fluoride Reduction
Water Sources: Bore Water, Tap Water, Surface Water
Pre-filtration: < 5microns
Max Flow Rate: 44 litres per minute
Unit Dimensions: 28 x 7.6 cm
Max Operating Pressure: 8.6 bar
Expected Life: 740,000 litres
Operating Temperature: 5 – 38 C
Disinfection Capacity: >99%
Inlet/ Outlet: 1” NTP std

Quantity:
Add To Cart
Clairify RO
NZ$112.00

Application: Point – of -Use
Power Requirements: None
Main Use: Water Disinfection, Taste and odour Removal
Flow Rates: 2 litres per minute
Unit Dimensions: 25.4 x 5cm
Max Operating Pressure: 8.6 bar
Expected Life: 11,100 litres
Operating Temperature: 5 – 38 C
Disinfection Capacity: >99%
Inlet/ Outlet: 3/8 inch
